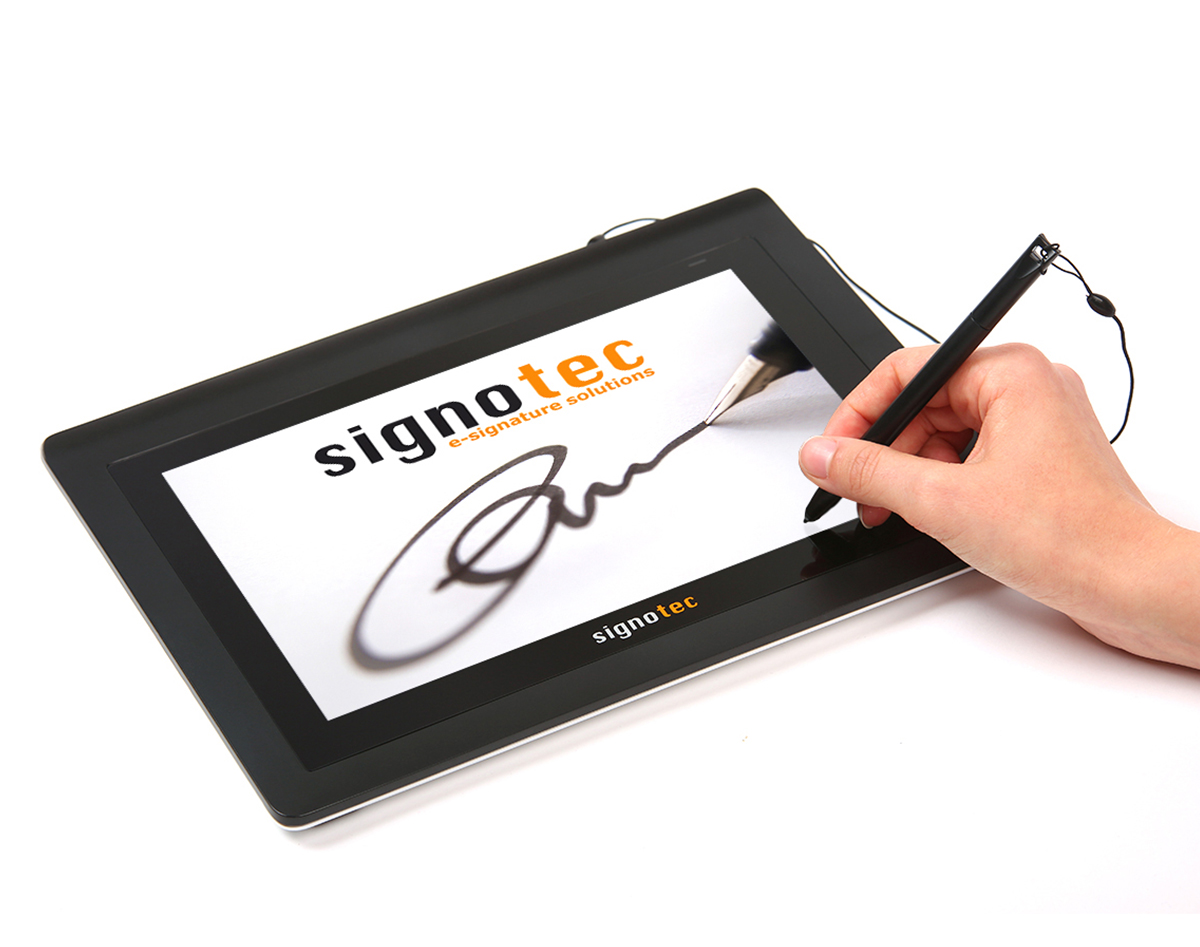

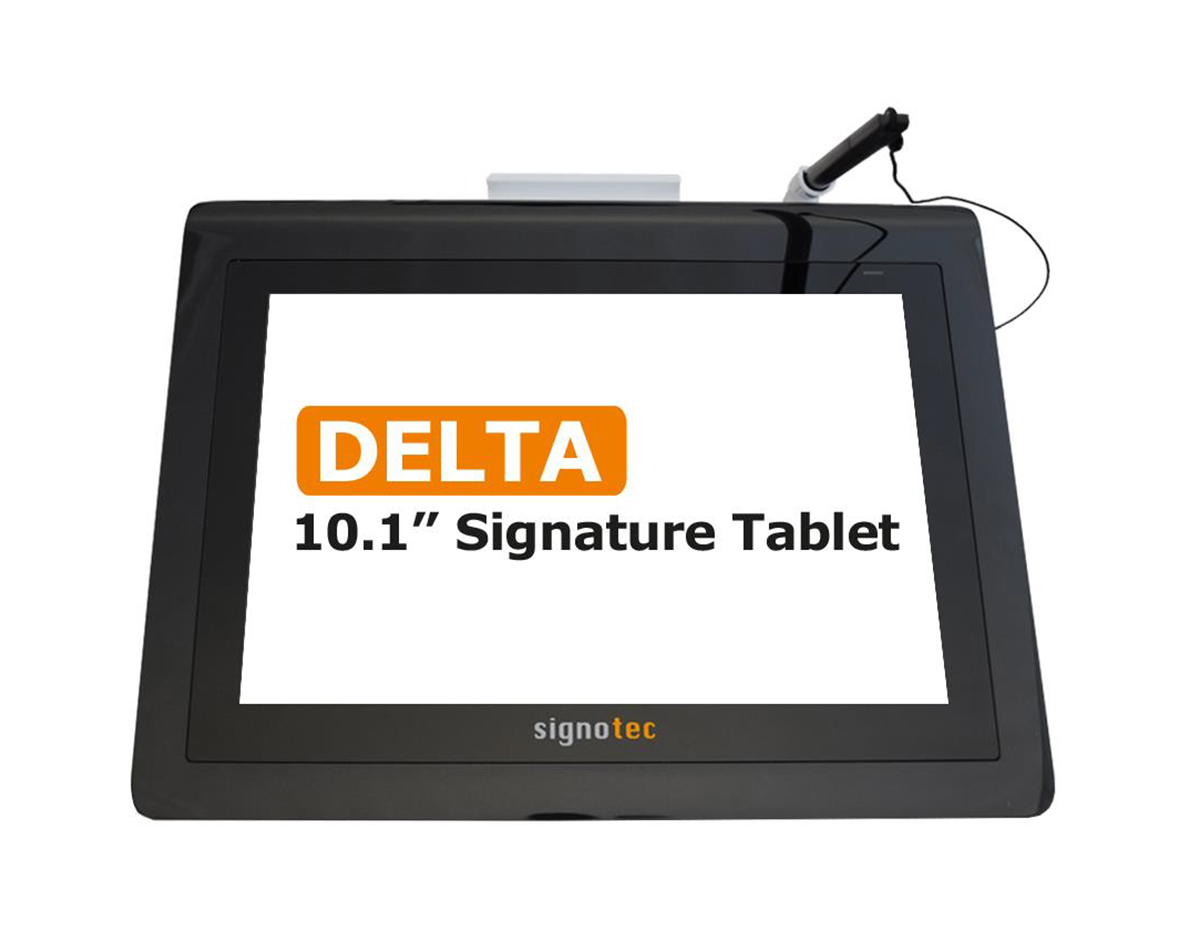

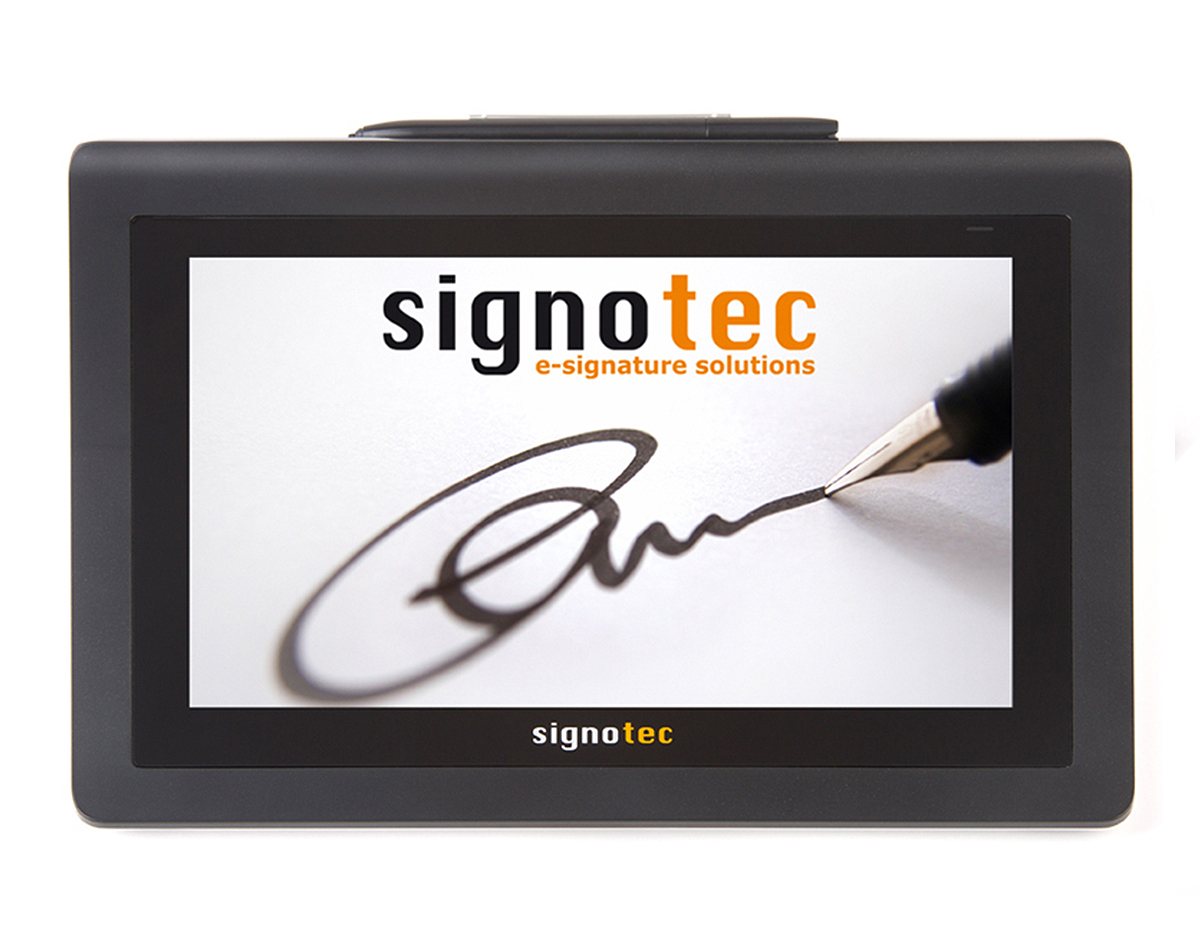

The LCD Signature Pad "Delta" Signature Pad is designed for applications where it is important to be able to read complete documents before signing them. A4-documents are displayed in their original width. You can comfortably scroll through the document by using the pen. You can start the downward (or upward) document sliding only by brushing the screen with the pen tip. This motion will start the screen scrolling. It is the ideal solution for banks, government agencies as well as for companies where complex documents must be read before signing.

However, the technique used is unique. Unlike other 10-inch devices on the market, the signotec Delta Signature Pad is a true signature pad and not a simple monitor extension. The signotec Delta has the same SDK as all other signotec Signature Pads and is also integrated in all applications. What are the advantages of this? As an integrator and developer, you can fully interact with the pad: Download PDF documents to the pad, create your own graphics, images and texts, create buttons and capture the signature in various formats.

The signotec Delta Signature pad is equipped, naturally, with the patented security of signing PDF documents inside the pad and of encrypting the biometric signature using a public- RSA-key. Furthermore, it comes with the "Secure Mode", which only uses a reduced amount of data for the real-time display on the PC monitor. Hence, the biometric characteristic of the signature cannot be reconstructed. Other devices on the market encrypt the data transmission, but decrypt the biometric data for the real-time display on the PC. With monitor extensions, even the mouse pointer is moved: The signature can there easily be spied out and captured. With signotec Signature Pads, you have the good feeling to get the highest security for capturing biometric signatures.

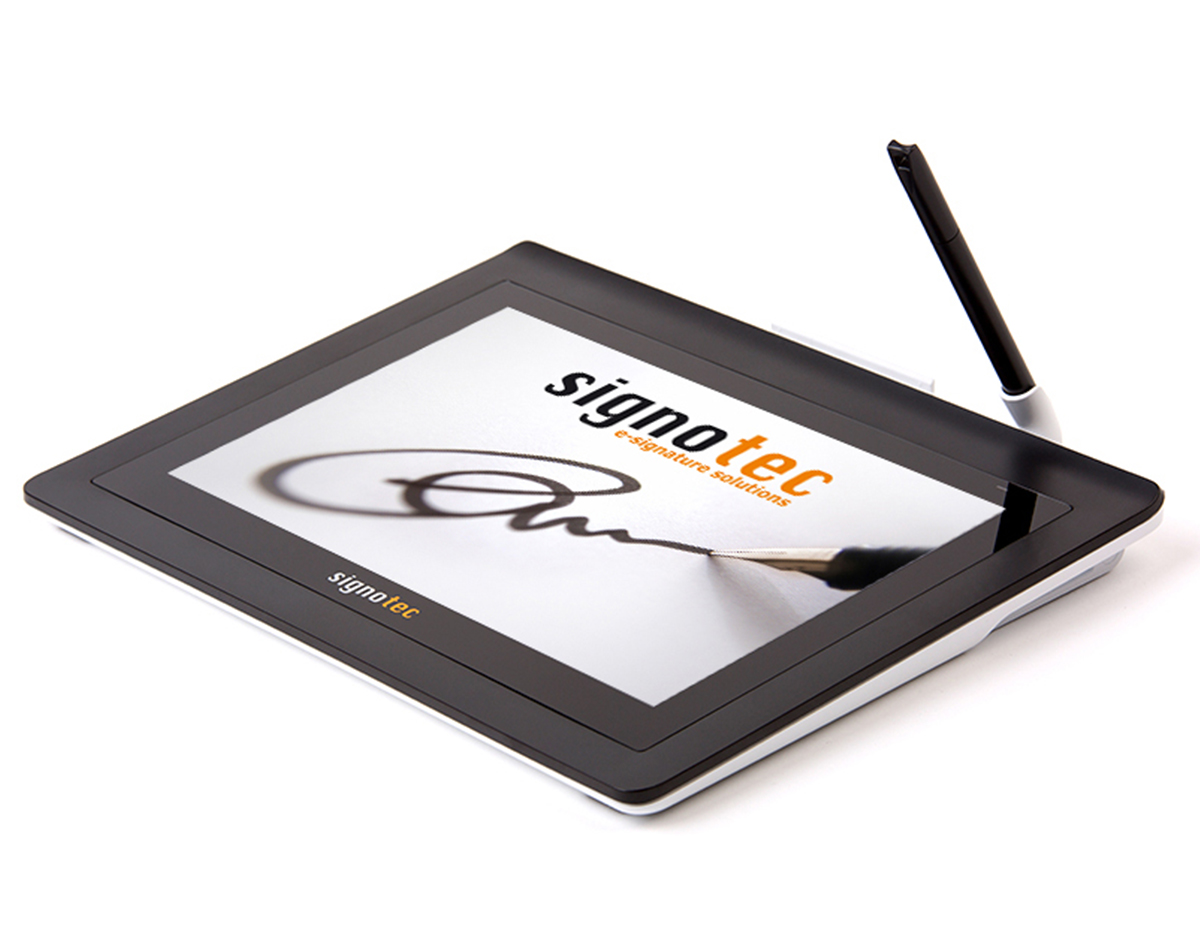

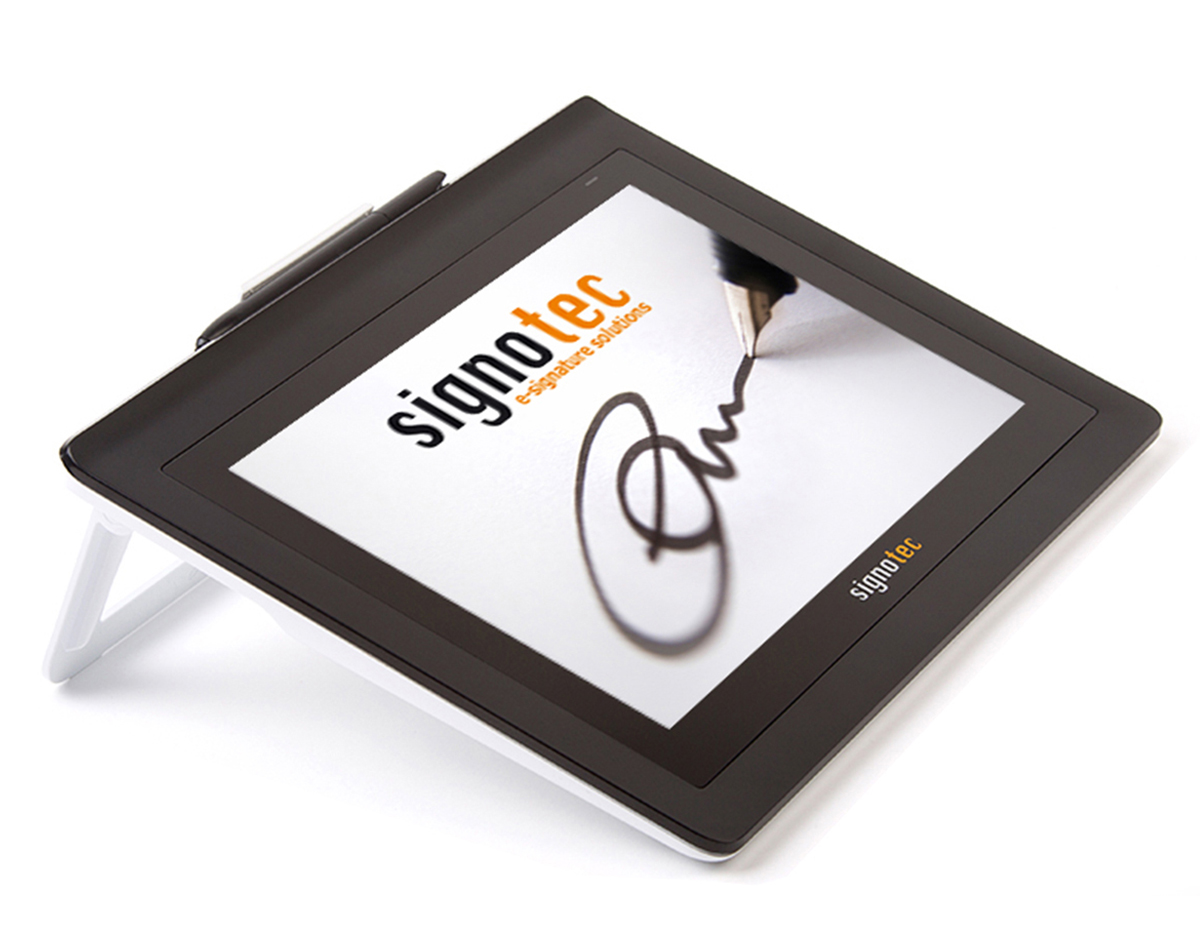

The signotec Delta pad can be placed on the desk in a space-saving manner or can be brought into an oblique position with its integrated stand. In addition, it comes with a 75 VESA- mounting fixture for mounting on third-party VESA mounts. There are two pen holders for the best ergonomics and the respective application: either horizontally above the device or inclined to the user.

Highlights:

  • 10,1“ full-color display with a resolution of 1.280 x 800 pixel.
  • Battery-free pen with 2.048 pressure levels.
  • Ergonomic pen holder.
  • Resolution of sensor of 5.080 LPI.
  • Transfer rate of 4D signature data at 500 Hz.
  • Only one USB-cable for connection.
  • Optional Ethernet-port for network integration.
  • Extremely robust surface with a lifetime of over 30 million signatures.
  • Patented security for the conclusive signature of PDF documents.
  • Magnetic resonance technology: The surface reacts to the pen only.
  • Unique ID (serial number).

ethernetThe signotec Delta Pad not only proves the groundbreaking quality characteristics of the signotec products. signotec is also taking a new approach in terms of the ability to integrate and, above all, of the security of investment. For the first time, all connection types of the signotec pads are optional available in one device: HID-USB, WIN-USB, virtual COM- Port and Ethernet. You can switch between all operating modes. ethernet

By means of own development and production of electronic, firmware, drivers and applications an optimal coordination between soft- and hardware is provided. Soft- and hardware from a single source – Made in Germany.

Display

Type 25.5 cm (10,1") Full-Colour LCD with LED-backlight
Colours 16.7 Million
Resolution 1.280 x 800 pixels
Scroll-Function Yes, graphics up to 1.280 x 37.600 pixels

Sensor

Type ERT (Electromagnetic-Resonance-Technology)
Pen batteryless special pen with changeable pen tip
Surface particularly resistant, hardened special glass
Life expectancy approx. 30 Million Signatures
Pressure Stages 2.048
Sample Rate 500 Hz, 4D Samples (x, y, z, t)
Active Signing Area 217 x 136 mm
Resolution 10.800 x 6.900 Pixel ≙ 1.264 x 1.292 dpi

Security

Encryption AES- and RSA-Encryption
Secure Mode Real-time display of the signature without usable biometrics
PDF-Signature RSA signature creation device inside the pad
Hash-Algorithms SHA-256 und SHA-512

Connection

Connection USB (Y-Cable) (approx. 2.7 meters cable length)
Power Supply USB (Y-Cable) or optional power supply
Network (TCP/IP) Yes, optional with integrated Ethernet port (RJ45)
Terminal Server / Citrix Yes, optional with Ethernet or signotec vCOM driver
Citrix Virtual Channel Yes, optional with signotec Virtual Channel driver

Others

Dimensions (W x D x H) 280 x 205 x 13-23 mm
Weight approx. 650g
Status LED 2-colour status LED
Slideshow Yes, up to 16 images as self-sufficient slideshow inside the pad
Customization Change of housing color and logo print (on request)
Warranty 2 years

The signotec pads (signotec Omega firmware 1.25, signotec Sigma 1.16) have the highest security mechanisms available. This allows a complete chain of evidence in dispute. Depending on the integration, different techniques are used:
  • PDF documents can be signed inside the pad and not in the insecure environment of the PC.
  • The biometric data of the signature can be RSA-encrypted inside the pad using a public key.
  • RSA-signature of the displayed content and signature.
  • Upon delivery, each pad has a separate and unique RSA certificate for signing.
  • Storing of custom RSA-certificates inside the pad.
  • The pad can generate a RSA certificate.
  • Supported schemes are RSA PKCS # 1 v1.5 (with or without the hash OID), PKCS # 1 v2.1
  • Certificates can be certified by a Root Authority
  • Supported hash algorithms are SHA-1, SHA-256 and SHA-512.
